- Build to Last: Cast iron, rubber, quenching, and painting processes make the whole product corrosion-resistant, wear-resistant, heat-resistant, and not easy to rust, so it can keep beautiful and practical for a long time.
- High Accuracy: The combination of the oil distribution plate, stator and rotor pairs, and output shaft ensures the high accuracy of the product and provides more convenience for your use.
- Careful Design: The high-quality bearings make the product have a strong radial force and high-pressure resistance, so you can use it safely.
- Powerful Function: As an executive component of the hydraulic system, the motor can effectively convert the liquid pressure energy provided by the hydraulic pump into the mechanical energy (torque and speed) of its output shaft, thus providing sufficient energy.
- Simple Installation and Use: Simple structure and quick start design ensure that you can complete the installation and start using it in a short time. The motor can be used in series or in parallel, with high-cost performance.
Description

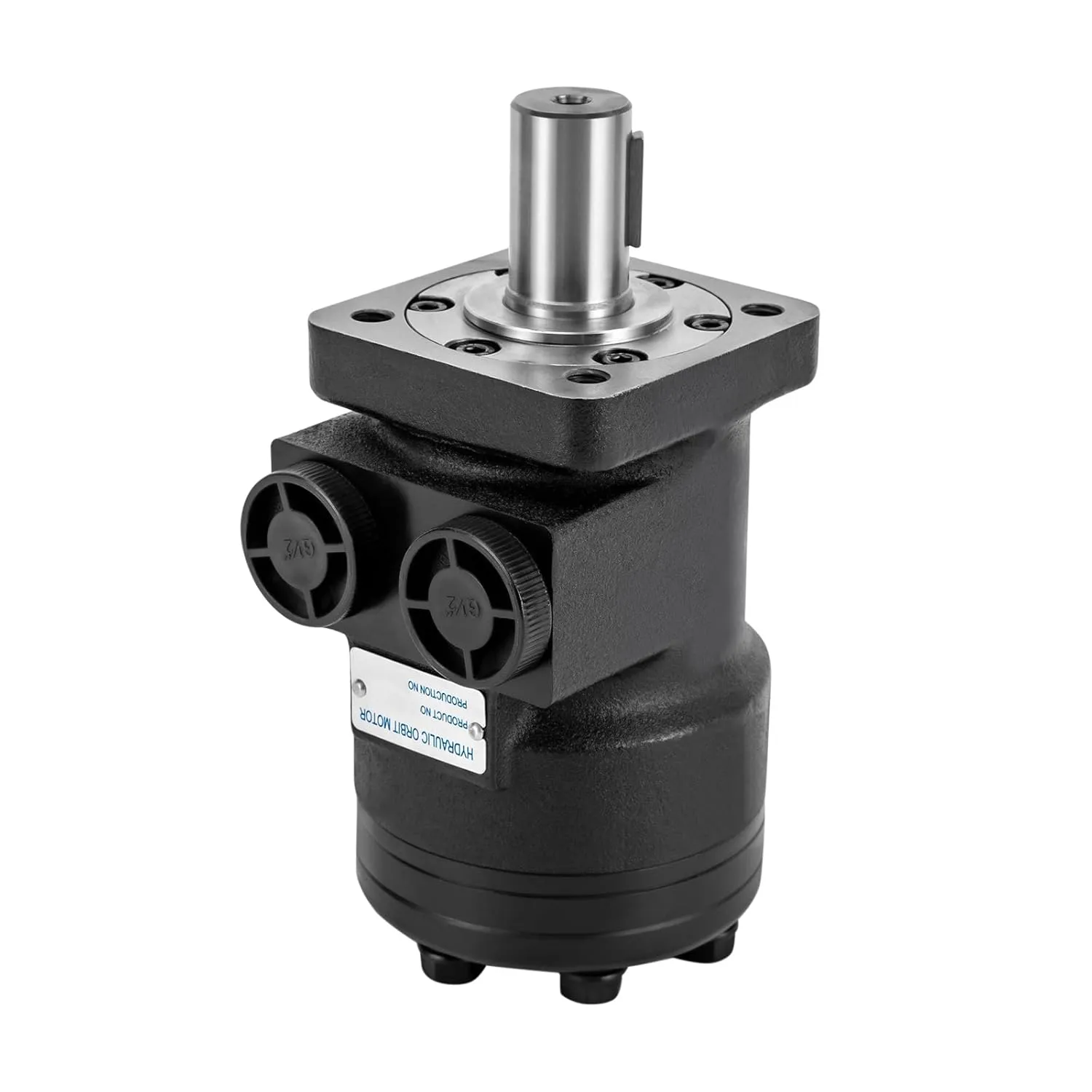

This product is suitable for Char-Lynn 101-1001-009 and Eaton 101-1001. It has high speed and high torque to provide you with more power. It also features a stator rotor and S-bearing, resulting in high precision and strong pressure resistance. It will be your powerful power source!
Specification
Material: Cast Iron, Low Carbon Alloy Steel
Color: Black
Process: Powder Metallurgy
Assembly Required: No
Compatible: For Char-Lynn 101-1001-009 and Eaton 101-1001
Shaft: 2.54cm/1 Inch Straight w/Woodruff Key O-Ring
Mount: 4 Bolt Flange
Port Size: ½ NPTF
Displacement: 50ML/R 1.69Oz/R
Flow Rate: Continuous: 45LPM; Intermittent: 50LPM
Speed: Continuous: 879rpm; Intermittent: 975rpm
Pressure: Continuous: 12.5MPA; Intermittent: 16.5MPA
Torque: Continuous: 81N*M; Intermittent: 108N*M
Gross Weight: 5.5kg/ 12.13 lbs
Product Size: 10*10*19.3cm/ 3.94*3.94*7.6 in
Package Size: 26*13*13cm/ 10.24*5.12*5.12in
Package Included
1 * Hydraulic Motor
Notes
1.The normal operating oil temperature of this product is 68-140 ℉, and the maximum system operating temperature is 194 ℉ (not more than 1 hour).
2.Filter filtration accuracy is 10-30 microns, and it is better to add a magnetic block at the bottom of the oil tank to stop metal chips from entering the system. The solid contamination level of working oil should not be higher than 19/16.
3.Please select the appropriate hydraulic oil according to the actual operation and ambient temperature. The oil viscosity at 104 ° F is 42-74MM2/S.
4.When used in series or parallel, the external drain must be used for pressure relief if the back pressure exceeds 10MPA (the rotating speed is lower than 200RPM). It is better to connect the external drain directly with the oil tank.
5.The best working condition of the motor should be selected at the rated working condition of 1/3-2/3.
- Product Dimensions : 3.94 x 3.94 x 7.6 inches; 12.13 Pounds
- Date First Available : March 28, 2022
- Manufacturer : TBVECHI
- Country of Origin : China
